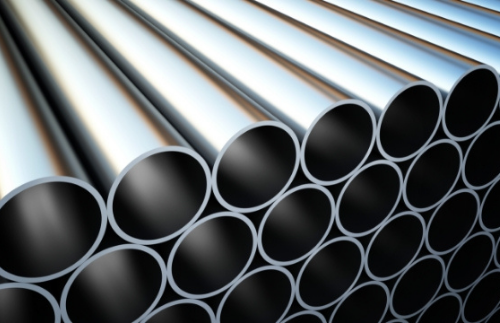

304L Stainless Steel Seamless Pipes & Tubes



The 304LL Stainless Steel Seamless Pipe is produced without the requirements of fillets or welding. These pipes are extremely strong and a little expensive due to the materials used in their manufacturing. SS 304LL Seamless Pipe can be used in very corrosive environments. They are available in different schedules and wall thicknesses to suit the different requirements of our clients. Manufactured by joining pieces of steel together, the SS UNS S304L03 Welded Pipe is highly versatile. The low carbon in this 304LL alloy eliminates post-weld carbon precipitation. Weld annealing may be required for high-stress applications. The 304LL SS Schedule 40 Pipe is a high-pressure pipe. As the pressure and temperatures increase, the working allowance of these pipes decreases. These pipes can work at temperatures of up to 525 degrees C. The Stainless Steel 304LL Pipe/ Tube can be customized as per your requirements in different shapes and sizes.

The ASTM A312 TP 304LL Round Pipe is widely used across the world as it is highly cost-effective. These round pipes have excellent corrosion resistance properties due to the presence of chromium in their composition. The SA 312 TP 304LL ERW Pipe is designed with a fusion weld. These welds enable the pipe to be very durable and easy to maintain. Most pipes are hot or cold-rolled. The SS Grade 1.4306 Polished Pipe is very smooth and appealing due to its excellent finish. As a result, these pipes offer more protection and resistance against various elements. DIN 1.4306 Tubing is very successful across the world in dealing with intergranular corrosion and pitting due to various chlorides and sulfides. If you have any queries or want to know more about our AISI 304LL Square Pipe which can be easily fitted in compact spaces, contact us.

304L Stainless Steel Pipes and Tubes Product Range
304L Stainless Steel Pipes and Tubes Specifications: ASTM A/ASME SA213/A249/A269/A312/A358 CL. I to V ASTM A789/A790
304L Stainless Steel Pipes and Tubes Sizes (Seamless): 1/2” NB - 16” NB
304L Stainless Steel Pipes and Tubes Sizes (ERW): 1/2” NB - 24” NB
304L Stainless Steel Pipes and Tubes Sizes (EFW): 6” NB - 100” NB

304L Stainless Steel Pipes and Tubes Wall Thickness available:
Schedule 5S - Schedule XXS (heavier on request)

304L Stainless Steel Pipes and Tubes Other Materials Testing:

NACE MR0175, H2 SERVICE, OXYGEN SERVICE, CRYO SERVICE, etc.

304L Stainless Steel Pipes and Tubes Dimensions:
All Pipes is manufactured and inspected/tested to the relevant standards including ASTM, ASME and API etc.


Type 304L Stainless Steel has excellent welding and deep drawing characteristics - it is easy to fabricate, easy to clean and aesthetically pleasing to the eye.
Applications of Grade 304L Stainless Steel


The steel is common throughout industry particularly in food processing as the material is not susceptible to corrosion from acids found in common foodstuffs. As a consequence, such steel is ideal for items such as sinks, work surfaces, preparation areas and refrigerators. It is also a perfect material for use in the pharmaceutical industry for environments such as clean rooms.

Grade 304L can also be found in heat exchangers, chemical containers, pipelines and throughout the brewing industry. It can be used as a fabricated material where high temperature petroleum gases or steam production gases are stored such as pressure vessels. It can even be found extensively in the construction industry where the material is used for cosmetic purposes such as building fascias.

304L & 304LL plate and pipes have similar properties and in certain cases are stocked with Dual Certification, where it is concluded that each item has properties and a composition which comply with both steel types. Grade 304LH cannot be included in this equation due to the steel's higher carbon content which is intended for use in elevated temperature applications.


304L Stainless Steel Pipes and Tubes Composition

Typical compositional ranges for grade 304L stainless steels are given in table 1.

Table 1. Composition ranges for 304L grade stainless steel


Grade C Mn Si P S Cr Mo Ni N
304L min. - - - - - 18.0 - 8.0 -
max. 0.08 2.0 0.75 0.045 0.030 20.0 10.5 0.10
304LL min. - - - - - 18.0 - 8.0 -
max. 0.030 2.0 0.75 0.045 0.030 20.0 12.0 0.10
304LH min. 0.04 - - - - 18.0 - 8.0 -
max. 0.10 2.0 0.75 0.045 0.030 20.0 10.5


304L Stainless Steel Pipes and Tubes Mechanical Properties

Typical mechanical properties for grade 304L stainless steels are given in table 2.

Table 2. Mechanical properties of 304L grade stainless steel

Grade Tensile Strength
(MPa) min
YieldStrength
0.2% Proof (MPa) min
Elongation
(%in 50mm) min
Hardness
Rockwell B (HR B) max Brinell (HB) max
304L 515 205 40 92 201
304LL 485 170 40 92 201
304LH 515 205 40 92 201
304LH also has a requirement for a grain size of ASTM No 7 or coarser.


304L Stainless Steel Pipes and Tubes Physical Properties

Typical physical properties for annealed grade 304L stainless steels are given in table 3.

Table 3.
Physical properties of 304L grade stainless steel in the annealed condition

Grade Density (kg/m3) Elastic Modulus (GPa) Mean Coefficient of Thermal Expansion (m/m/0C) Thermal Conductivity (W/m.K) Specific Heat 0-1000C (J/kg.K) Electrical Resistivity (n.m)
0-1000C 0-3150C 0-5380C at 1000C at 5000C
304L/L/H 8000 193 17.2 17.8 18.4 16.2 21.5 500 720


304L Stainless Steel Pipes and Tubes Grade Specification Comparison

Approximate grade comparisons for 304L stainless steels are given in table 4.

Table 4. Grade specifications for 304L grade stainless steel

Grade UNS No Old British Euronorm Swedish SS Japanese JIS
BS En No Name
304L S304L00 304LS31 58E 1.4301 X5CrNi18-10 2332 SUS 304L
304LL S304L03 304LS11 - 1.4306 X2CrNi19-11 2352 SUS 304LL
304LH S304L09 304LS51 - 1.4948 X6CrNi18-11 - -
These comparisons are approximate only. The list is intended as a comparison of functionally similar materials not as a schedule of contractual equivalents. If exact equivalents are needed original specifications must be consulted.


304L Stainless Steel Pipes and Tubes Corrosion Resistance

Excellent in a wide range of atmospheric environments and many corrosive media. Subject to pitting and crevice corrosion in warm chloride environments, and to stress corrosion cracking above about 600C. Considered resistant to potable water with up to about 200mg/L chlorides at ambient temperatures, reducing to about 150mg/L at 600C.


304L Stainless Steel Pipes and Tubes Heat Resistance

Good oxidation resistance in intermittent service to 8700C and in continuous service to 9250C. Continuous use of 304L in the 425-8600C range is not recommended if subsequent aqueous corrosion resistance is important. Grade 304LL is more resistant to carbide precipitation and can be heated into the above temperature range.

Grade 304LH has higher strength at elevated temperatures so is often used for structural and pressure-containing applications at temperatures above about 5000C and up to about 8000C. 304LH will become sensitised in the temperature range of 425-8600C; this is not a problem for high temperature applications, but will result in reduced aqueous corrosion resistance.

304L Stainless Steel Pipes and Tubes Heat Treatment

Solution Treatment (Annealing) - Heat to 1010-11200C and cool rapidly. These grades cannot be hardened by thermaltreatment.
